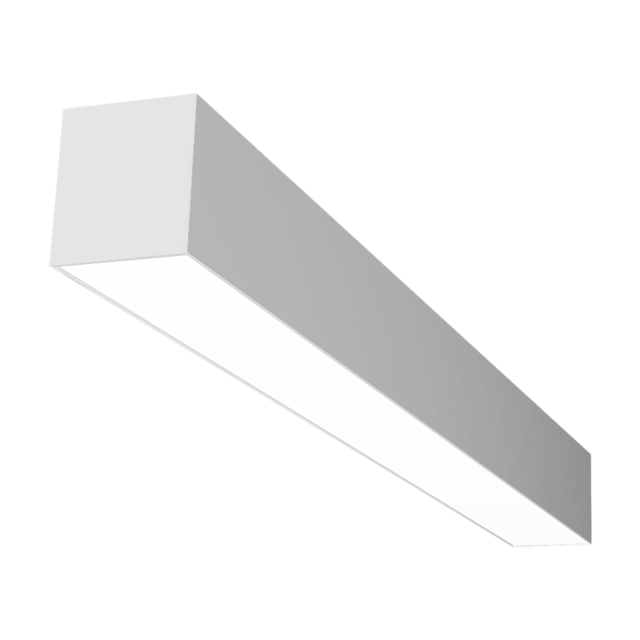

Profile 44 Direct Wall Asymmetric Hall Lyter
The PRFL-44AS-D-WM Hall Lyter is specifically engineered to illuminate hallways and corridors, delivering an average center-aisle illuminance of 50 foot-candles from a single corner-mounted luminaire on an 8-foot ceiling at standard lumen output.
Ideally suited for hospitals and healthcare facilities, the Hall Lyter provides exceptional corridor illumination while minimizing direct overhead light that can be uncomfortable for patients being transported on gurneys, or where overhead illumination is not possible.
The system may be installed in continuous runs of virtually any length and is available with illuminated corner sections to seamlessly follow corridors that change direction. The PRFL-44AS is designed for installation on walls and is also available for grid and plaster ceilings, and suspension mounting,Â
For wider or taller corridors requiring increased illumination, the Hall Lyter can be specified in high-output configurations or installed on both sides of the corridor to achieve higher light levels and enhanced uniformity.
Resources
CONSTRUCTION: Extruded aluminum side housing. 20-gauge cold-rolled steel top and internal components.
REFLECTOR: Highly reflective baked white enamel with pre-finished reflective LED tray; adjustable length.
OPTICS: A flush opal acrylic asymmetric lens is standard.
LED: Static white LED modules in 30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Tunable White, and Dim-to-Warm options available; field replaceable.
DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers are prewired for connection to the control system (by others) and are field-replaceable.
MOUNTING: Wall mounting with included brackets is standard.
FINISH: Housing and components finished in baked white enamel.
CERTIFICATION: cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved, Chicago Plenum approved, Damp Location suitable.
LEGAL: Day-O-Lite, a division of SCW Corporation. All rights reserved. The Day-O-Lite logo is a registered trademark of SCW Corporation. Actual product performance may differ due to end-user environment, application, and installation. Luminaires have been tested at an ambient temperature of 25 °C. Consult Day-O-Lite for high-ambient conditions. Day-O-Lite reserves the right to change specifications without notice to improve the product. DMX systems, sensors, and control options are to be commissioned by qualified personnel.
Distribution
- Asymmetical
- Direct
Ratings & Compliance
- BAE
- Chicago Approved
- Damp
- Declare
- Made in America
- Red List Approved
Listings
- CSA
- cETLus
Warranty
- 5 yr
