PRFL-4TZ-D-GPRFL-4TZ-D-G
New Product

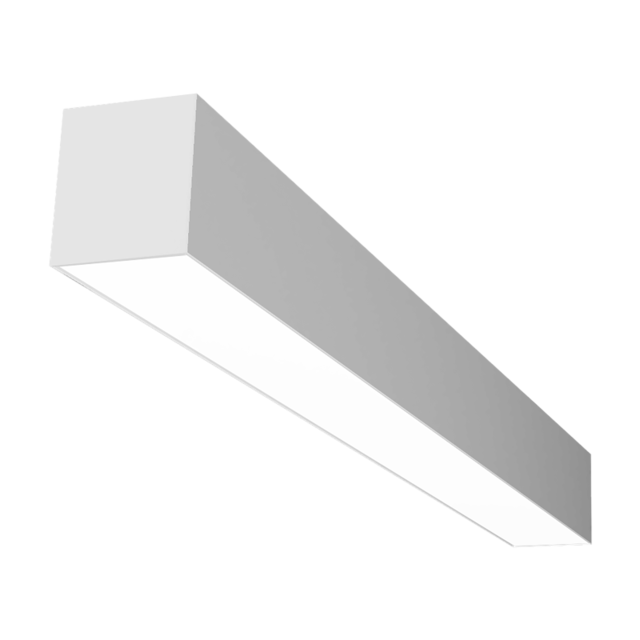

Profile 4" Direct Techzone
PRFL-4TZ has been engineered specifically for 4" Armstrong TechZone® ceiling systems. PRFL-4TZ is crafted from precision-extruded aluminum with welded end caps, making it an ideal lighting solution for modern commercial environments. Perfect for office spaces, classrooms, and healthcare facilities, this fixture offers both form and function.
Available as individual fixtures up to 8' or in continuous rows, PRFL-4TZ integrates seamlessly with TechZone ceiling systems. Compatible with advanced Smart Lighting technologies like daylight harvesting, occupancy sensing, and wireless control systems, this fixture enhances lighting performance while maintaining an aesthetically refined presence.
Chicago Plenum approved.
TechZone® is a registered trademark of Armstrong World Industries.
Available as individual fixtures up to 8' or in continuous rows, PRFL-4TZ integrates seamlessly with TechZone ceiling systems. Compatible with advanced Smart Lighting technologies like daylight harvesting, occupancy sensing, and wireless control systems, this fixture enhances lighting performance while maintaining an aesthetically refined presence.
Chicago Plenum approved.
TechZone® is a registered trademark of Armstrong World Industries.
Resources
CONSTRUCTION: Extruded aluminum side housing. 20-gauge cold-rolled steel top and internal components.
REFLECTOR: Highly reflective baked white enamel with pre-finished reflective LED tray; adjustable length.
OPTICS: Flush snap-in or Continuous (up to 50') lenses available.
LED: Static white LED modules in 30/35/40 & 50K CCT, 80/90CRI. Lumen maintenance minimum L70= 50,000 hours. 3 SDCM color consistency. BIOS SkyBlue, RGB, RGBW, RGBWW, Tunable White, and Dim-to-Warm options available; field replaceable.
DRIVER: Standard driver is Class 2 AOC 0-10V to 1%, Dim-to-Off available. 120/277V input, PF > 90%, THD < 20 @ 120V. DMX, DALI & Lutron protocols available. All drivers are prewired for connection to the control system (by others) and are field-replaceable.
MOUNTING: In 4" grid O.C. Armstrong TechZone ceiling systems.
FINISH: Housing and components finished in baked white enamel.
FINISH: Housing and components finished in baked white enamel.
CERTIFICATION: cETLus listed conforming to UL STD. 1598 and certified to CSA STD C22.2 NO. 250.0. Suitable for dry & damp locations. Union Made in the United States of America. I.B.E.W., BAA compliant, Declare Red List Approved, Chicago Plenum approved.
LEGAL: Day-O-Lite, a division of SCW Corporation. All rights reserved. The Day-O-Lite logo is a registered trademark of SCW Corporation. Actual product performance may differ due to end-user environment, application, and installation. Luminaires have been tested at an ambient temperature of 25 °C. Consult Day-O-Lite for high-ambient conditions. Day-O-Lite reserves the right to change specifications without notice to improve the product. DMX systems, sensors, and control options are to be commissioned by qualified personnel.
Mounting
- Grid
Distribution
- Direct
Ratings & Compliance
- Assembled in America
- Buy American Act (BAA)
- CCEA
- Chicago Approved
- Chicago Plenum
- Damp
- Declare
- Made in America
- Red List Approved
Listings
- CSA
- cETLus
Warranty
- 5 yr
Aperture
- 3
